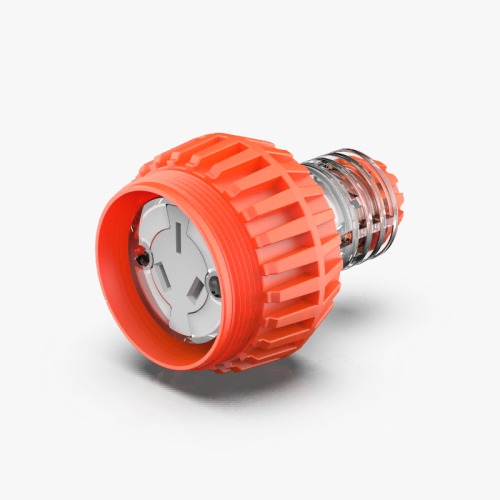

56WSC Plug Connector 3 Flat PIN 15A 250V IP66 Weatherproof Socket Outlet

Hover to inspect · click to zoom. Product shown may differ from the configured reference. Passa il mouse per ispezionare · clicca per ingrandire. Il prodotto mostrato può differire dalla referenza configurata.

Australian Std PlugSpine Standard Australiano

56WSC Plug Connector 3 Flat PIN 15A 250V IP66 Weatherproof Socket Outlet56WSC SPINA CONNETTORE 3 Flat PIN 15A 250V IP66 Weatherproof PRESA Outlet

ReferenceReferenza 56WSC-15A-250V-3PIN-IP66
IP66 15–15A
In production · made to order In produzione · su ordinazione
Australian-standard flat and round pin plugs and sockets provide IP66-rated connections for industrial and general power circuits in line with AS/NZS pin configurations.
Request a quoteRichiedi un preventivo Dimensions & wiringDimensioni e cablaggio

Dimensions & wiringDimensioni e cablaggio

56WSC Plug Connector 3 Flat PIN 15A 250V IP66 Weatherproof Socket Outlet — dimensional drawing

Model selection matrixMatrice di selezione modello

Every reference in this family, compared on the specifications that differ. The highlighted row is the product shown above. Voltage colour follows the CEE code moulded into the housing. Tutte le referenze di questa famiglia, confrontate sulle specifiche che variano. La riga evidenziata è il prodotto mostrato sopra. Il colore della tensione segue il codice CEE stampato sull'involucro.

110V 230V 400V 500V otheraltro
ReferenceReferenza Rated currentCorrente nominale VoltageTensione Link
56WSC-15A-250V-3PIN-IP66 this modelquesto modello 15A 250V 500V
56WSC-32A-500V-5PIN-IP66 32A 250 500 ViewVedi
WP56-ANGLE-5PIN-50A-500V-IP66 50A 500V ViewVedi
WP56-PLUG-3PIN-10A-IP66 10A 250V ViewVedi
WP56-PLUG-4PIN-50A-IP66 50A 500V ViewVedi

Key featuresCaratteristiche chiave

  • AS/NZS pin geometry Compatible with Australian and New Zealand standard outlets.
  • IP66 sealed connectors Protected against dust and water jets.
  • Multiple pin/current options 3 to 5-pin configurations from 10A to 50A.
  • Single and three-phase versions Covers both domestic and industrial loads.

ApplicationsApplicazioni

  • Industrial facilities (AU/NZ) Standard-compliant power connections.
  • Outdoor and washdown areas Sealed connectors for exposed installations.
  • Mining and resources Rugged connectors for demanding sites.
  • Portable equipment supply Field connections for tools and machinery.

More in Australian Std Plug Altro in Spine Standard Australiano

56WSC Plug Connector 3 Flat PIN 15A 250V IP66 Weatherproof Socket Outlet56WSC SPINA CONNETTORE 3 Flat PIN 15A 250V IP66 Weatherproof PRESA Outlet 56WSC-15A-250V-3PIN-IP66
