IP66
Hover to inspect · click to zoom. Product shown may differ from the configured reference. Passa il mouse per ispezionare · clicca per ingrandire. Il prodotto mostrato può differire dalla referenza configurata.
Combination Switched SocketPrese Combinate con Interruttore
SOCKET POWER COMBINATION SWITCHED INDUSTRIAL CIRCUIT PROTECTION OUTLET 1P 250V 10A-50A IP66PRESA COMBINATION SWITCHED INDUSTRIALE CIRCUIT PROTECTION OUTLET 1P 250V 10A-50A IP66
ReferenceReferenza
CSI-1P-10/50-IP66
IP66
10–50A
1P
In production · made to order
In produzione · su ordinazione
Combination switched sockets integrate circuit protection with a switched outlet, offering overload and short-circuit protection alongside a safe, isolatable power point.

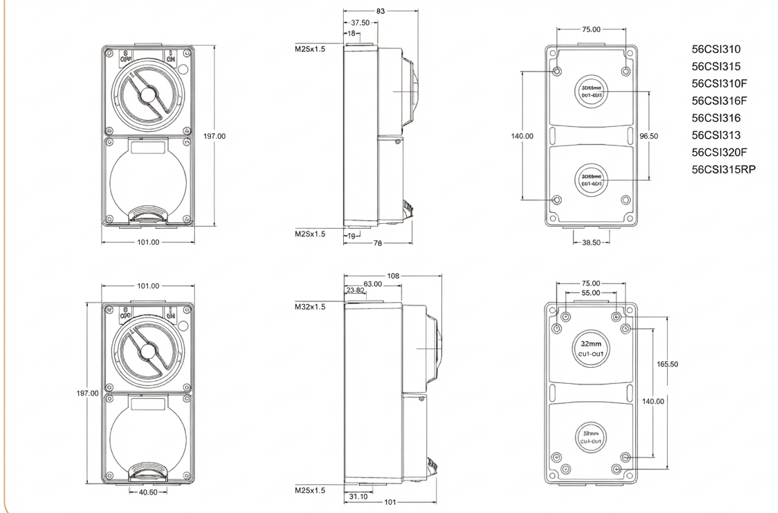

Dimensions & wiringDimensioni e cablaggio
Model selection matrixMatrice di selezione modello
Every reference in this family, compared on the specifications that differ. The highlighted row is the product shown above. Voltage colour follows the CEE code moulded into the housing. Tutte le referenze di questa famiglia, confrontate sulle specifiche che variano. La riga evidenziata è il prodotto mostrato sopra. Il colore della tensione segue il codice CEE stampato sull'involucro.
110V
230V
400V
500V
otheraltro
| ReferenceReferenza | PolesPoli | VoltageTensione | Link |
|---|---|---|---|
| CSI-1P-10/50-IP66 this modelquesto modello | 1P | 250V | |
| CSI-3P-10/50-IP66 | 3P | 500V | ViewVedi |
Key featuresCaratteristiche chiave
- Integrated circuit protection Built-in protection against overload conditions.
- Switched outlet Local isolation without removing the plug.
- IP66 sealed housing Dust-tight and protected against water jets.
- Wide current range 10A to 50A rated options.
ApplicationsApplicazioni
- Workshops & plant rooms Protected outlets for fixed and portable equipment.
- Outdoor installations Sealed housing for weather exposure.
- Industrial maintenance Safe, isolatable supply points.
- Retail & commercial sites Protected general-purpose outlets.
