Waterproof SwitchInterruttori Stagni
ELCF4 Weatherproof Isolating Switch 1/2/3/4P 20A 35A 63A Outdoor Isolator Switch IP66ELCF4 Weatherproof Isolating INTERRUTTORE 1/2/3/4P 20A 35A 63A Outdoor Isolator INTERRUTTORE IP66
ReferenceReferenza
ELCF4-1/2P-20/35- IP68
IP66
20–63A
1P
2P
In production · made to order
In produzione · su ordinazione
Weatherproof isolating and changeover switches provide rugged, IP66-rated manual control of industrial circuits, suitable for outdoor and washdown environments.

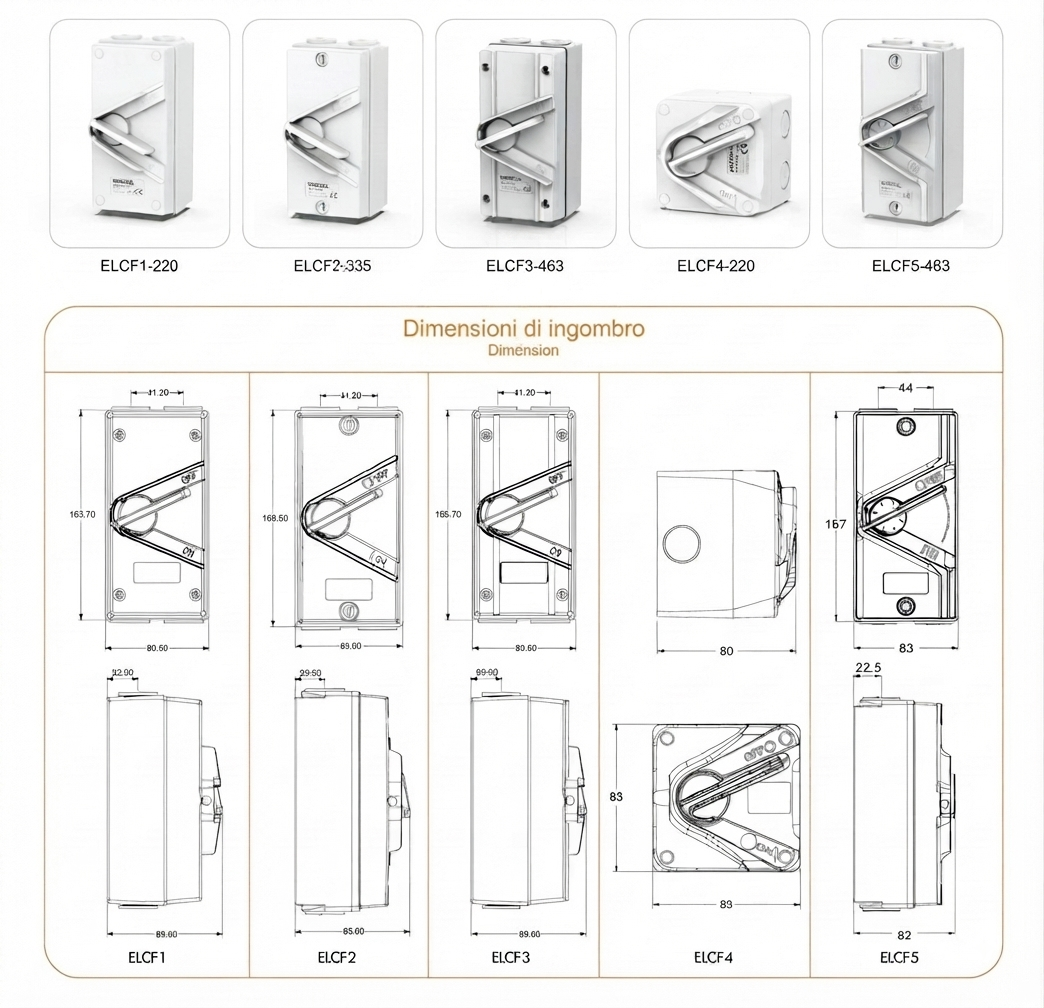

Dimensions & wiringDimensioni e cablaggio
Model selection matrixMatrice di selezione modello
Every reference in this family, compared on the specifications that differ. The highlighted row is the product shown above. Voltage colour follows the CEE code moulded into the housing. Tutte le referenze di questa famiglia, confrontate sulle specifiche che variano. La riga evidenziata è il prodotto mostrato sopra. Il colore della tensione segue il codice CEE stampato sull'involucro.
110V
230V
400V
500V
otheraltro
| ReferenceReferenza | Rated currentCorrente nominale | PolesPoli | VoltageTensione | Link |
|---|---|---|---|---|
| ELCF1-20-63A-IP66 | 20A, 35A, 63A | 1P, 2P, 3P, 4P | 250 440 500 | ViewVedi |
| ELCF2-20-63A IP66 | 20A, 35A, 63A | 1P, 2P, 3P, 4P | 250 440 500 | ViewVedi |
| ELCF3-20-63A IP67 | 10A, 20A, 35A | 1P, 2P, 3P, 4P | 250 440 500 | ViewVedi |
| ELCF4-1/2P-20/35- IP68 this modelquesto modello | 20A, 35A, 63A | 1P, 2P | 250 | |
| ELCF5-20-63A IP66 | 20A, 35A, 63A | 1P, 2P, 3P, 4P | 250 440 500 | ViewVedi |
Key featuresCaratteristiche chiave
- IP66 sealed enclosure Protected against dust and powerful water jets.
- Rotary isolator action Clear on/off/changeover positions.
- Multi-pole configurations 1P to 4P options for varied circuit needs.
- Padlockable in OFF position Supports safe lockout/tagout procedures.
ApplicationsApplicazioni
- Outdoor plant isolation Local disconnect for pumps, fans and outdoor machinery.
- Washdown environments Food, agricultural and marine processing areas.
- Generator changeover Manual switching between mains and standby supply.
- Site electrical distribution Local isolation points across a facility.
