IP67
Hover to inspect · click to zoom. Product shown may differ from the configured reference. Passa il mouse per ispezionare · clicca per ingrandire. Il prodotto mostrato può differire dalla referenza configurata.
Industrial Plug & ConnectorSpine e Connettori Industriali
SOCKET POWER INDUSTRIAL 3P/4P/5P 63A CEEPRESA INDUSTRIALE 3P/4P/5P 63A CEE
ReferenceReferenza
ELC-U-63A IP44
IP44
63–63A
2P
3P
4P
5P
In production · made to order
In produzione · su ordinazione
TRX Industrial Plugs and Connectors are engineered to provide maximum electrical safety and reliable performance in demanding industrial environments. Designed with color-coded voltage identification, secure insertion systems, and dedicated grounding pins, they ensure safe and efficient operation.

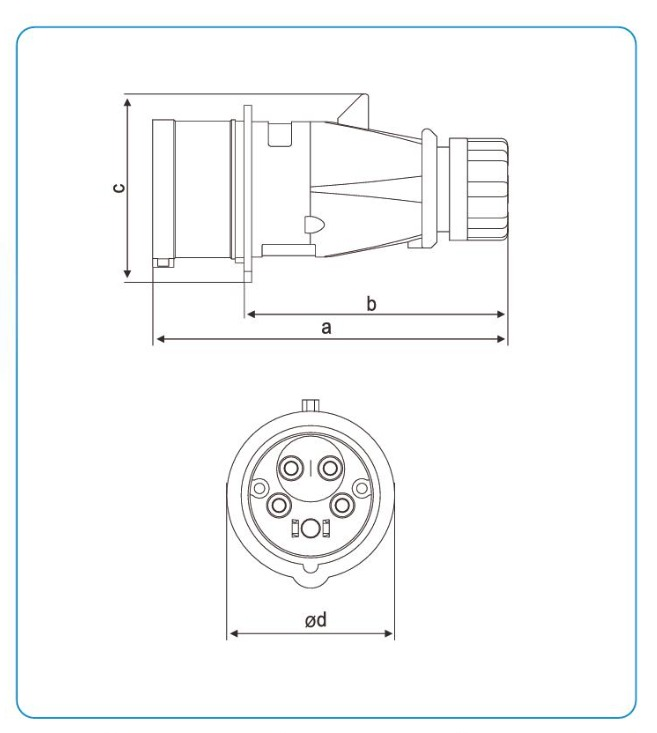

Parameters & real dimensions
| Parameter | 63 A 3 P | 63 A 4 P | 63 A 5 P |
|---|---|---|---|
| Dimension a (mm) | 234 | 234 | 234 |
| Dimension b (mm) | 96 | 96 | 96 |
| Dimension c (mm) | 109 | 109 | 109 |
| Conductor cross section (mm²) | 1.5 - 4 | 1.5 - 4 | 1.5 - 4 |
- IP44 protection to CEE / IEC 60309-2
- Phase inversion (phase reversal) provision
- Screw terminals, captive clamping plates
- Monobloc body — single-piece housing
- Colour-coded voltage identification
- External strain relief on cable entry
Model selection matrixMatrice di selezione modello
Every reference in this family, compared on the specifications that differ. The highlighted row is the product shown above. Voltage colour follows the CEE code moulded into the housing. Tutte le referenze di questa famiglia, confrontate sulle specifiche che variano. La riga evidenziata è il prodotto mostrato sopra. Il colore della tensione segue il codice CEE stampato sull'involucro.
Key featuresCaratteristiche chiave
- Ergonomic & secure design Easy-grip housing for comfortable handling and smooth insertion and removal.
- Strain relief system External cable clamping protects the internal gland for a durable seal.
- Heat-resistant contacts Current-carrying parts use high-temperature resistant materials.
- Enhanced protection level IP44/IP67 ratings guard against dust, water and impact.
ApplicationsApplicazioni
- Machinery manufacturing Reliable power for motors, control systems and automation equipment.
- Pharmaceutical & process industry Stable performance for controlled production environments.
- Construction sites Powers cranes, mixers and welding equipment.
- Port & marine equipment Suitable for marine conditions and frequent connect/disconnect cycles.
- Stage & event equipment Dependable connections for lighting and sound systems.
- Mining & heavy industry High protection against dust, moisture and impact.
